5/16" x 1/2-Inch Drive Standard Impact Socket

Click to Enlarge

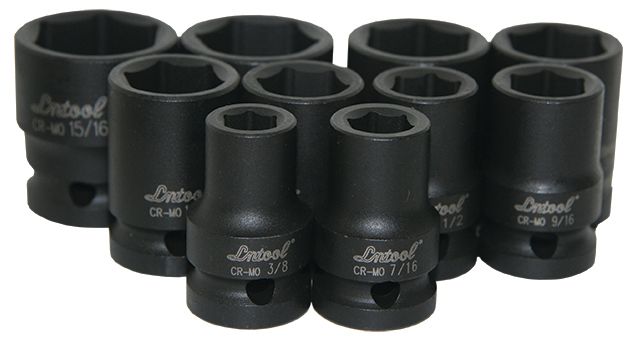

1/2-Inch Drive Standard Impact Sockets - Imperial

Code	Description	Weight	Diameter	Length	Torque (Nm)	Max. Opening	Teeth	Torque (kg-cm)	Depth (mm)	Standards	Shank	Striking Face	Cutting Force (Nm)	Cutting Dia HRC30	Cutting Dia HRC20	Nut Diameter (mm)	Brush Diameter (mm)	Thread	Bolt Diameter (mm)	Capacity (tonne)	Leg Depth (mm)	Min Height	Max Height	Adjusting Height (mm)	Price
11370	5/16" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.1 kg Diameter: 14 Length: 38 Torque (Nm): 124 Torque (kg-cm): 1267 Standards: ANSI	0.1 kg	14	38	124			1267		ANSI
11371	3/8" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.1 kg Diameter: 17 Length: 38 Torque (Nm): 169 Torque (kg-cm): 1728 Standards: ANSI	0.1 kg	17	38	169			1728		ANSI
11372	7/16" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.1 kg Diameter: 18 Length: 38 Torque (Nm): 226 Torque (kg-cm): 2304 Standards: ANSI	0.1 kg	18	38	226			2304		ANSI
11373	1/2" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.1 kg Diameter: 20 Length: 38 Torque (Nm): 294 Torque (kg-cm): 2996 Standards: ANSI	0.1 kg	20	38	294			2996		ANSI
11374	9/16" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.1 kg Diameter: 22 Length: 38 Torque (Nm): 373 Torque (kg-cm): 3802 Standards: ANSI	0.1 kg	22	38	373			3802		ANSI
11375	5/8" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.12 kg Diameter: 24 Length: 38 Torque (Nm): 463 Torque (kg-cm): 4724 Standards: ANSI	0.12 kg	24	38	463			4724		ANSI
11376	11/16" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.12 kg Diameter: 26 Length: 38 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: ANSI	0.12 kg	26	38	561			5716		ANSI
11377	3/4" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.13 kg Diameter: 28 Length: 38 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: ANSI	0.13 kg	28	38	561			5716		ANSI
11378	13/16" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.16 kg Diameter: 30 Length: 38 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: ANSI	0.16 kg	30	38	561			5716		ANSI
11379	7/8" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.17 kg Diameter: 32 Length: 38 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: ANSI	0.17 kg	32	38	561			5716		ANSI
11380	15/16" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.17 kg Diameter: 34 Length: 38 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: ANSI	0.17 kg	34	38	561			5716		ANSI
11381	1" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.18 kg Diameter: 36 Length: 38 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: ANSI	0.18 kg	36	38	561			5716		ANSI
11382	1-1/16" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.2 kg Diameter: 38 Length: 43 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: DIN	0.2 kg	38	43	561			5716		DIN
11383	1-1/8" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.22 kg Diameter: 40 Length: 48 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: DIN	0.22 kg	40	48	561			5716		DIN
11384	1-3/16" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.25 kg Diameter: 42 Length: 48 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: DIN	0.25 kg	42	48	561			5716		DIN
11385	1-1/4" x 1/2-Inch Drive Standard Impact Socket Details Weight: 0.25 kg Diameter: 44 Length: 48 Torque (Nm): 561 Torque (kg-cm): 5716 Standards: DIN	0.25 kg	44	48	561			5716		DIN
