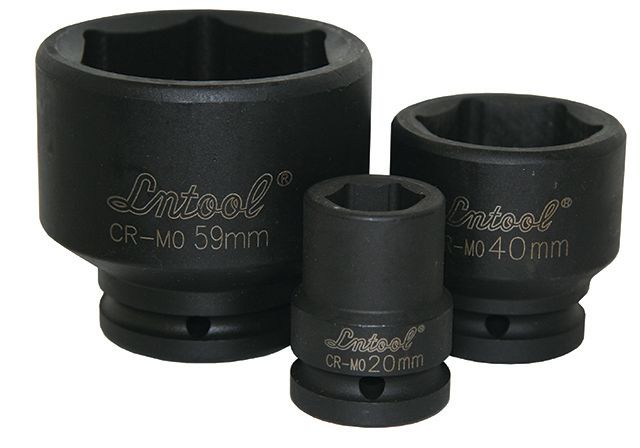

3/4-Inch Drive Standard Impact Sockets - Imperial

Code Description Weight Diameter Length Torque (Nm) Max. Opening Teeth Torque (kg-cm) Depth (mm) Standards Shank Striking Face Cutting Force (Nm) Cutting Dia HRC30 Cutting Dia HRC20 Nut Diameter (mm) Brush Diameter (mm) Thread Bolt Diameter (mm) Capacity (tonne) Leg Depth (mm) Min Height Max Height Adjusting Height (mm) Price
11548
11/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.3 kg
  • Diameter:
    30
  • Length:
    50
  • Torque (Nm):
    576
  • Torque (kg-cm):
    5876
  • Standards:
    ANSI
0.3 kg
30
50
576
5876
ANSI
11549
3/4" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.3 kg
  • Diameter:
    32
  • Length:
    51
  • Torque (Nm):
    678
  • Torque (kg-cm):
    6913
  • Standards:
    ANSI
0.3 kg
32
51
678
6913
ANSI
11550
13/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.3 kg
  • Diameter:
    35
  • Length:
    51
  • Torque (Nm):
    768
  • Torque (kg-cm):
    7834
  • Standards:
    ANSI
0.3 kg
35
51
768
7834
ANSI
11551
7/8" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.3 kg
  • Diameter:
    36
  • Length:
    50
  • Torque (Nm):
    870
  • Torque (kg-cm):
    8871
  • Standards:
    ANSI
0.3 kg
36
50
870
8871
ANSI
11552
15/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.3 kg
  • Diameter:
    38
  • Length:
    51
  • Torque (Nm):
    983
  • Torque (kg-cm):
    10023
  • Standards:
    ANSI
0.3 kg
38
51
983
10023
ANSI
11553
1" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.3 kg
  • Diameter:
    41
  • Length:
    50
  • Torque (Nm):
    1096
  • Torque (kg-cm):
    11176
  • Standards:
    ANSI
0.3 kg
41
50
1096
11176
ANSI
11554
1-1/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.3 kg
  • Diameter:
    42
  • Length:
    53
  • Torque (Nm):
    1220
  • Torque (kg-cm):
    12443
  • Standards:
    ANSI
0.3 kg
42
53
1220
12443
ANSI
11555
1-1/8" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.36 kg
  • Diameter:
    45
  • Length:
    53
  • Torque (Nm):
    1345
  • Torque (kg-cm):
    13710
  • Standards:
    ANSI
0.36 kg
45
53
1345
13710
ANSI
11556
1-3/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.36 kg
  • Diameter:
    46
  • Length:
    53
  • Torque (Nm):
    1469
  • Torque (kg-cm):
    14978
  • Standards:
    ANSI
0.36 kg
46
53
1469
14978
ANSI
11557
1-1/4" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.5 kg
  • Diameter:
    48
  • Length:
    51
  • Torque (Nm):
    1604
  • Torque (kg-cm):
    16360
  • Standards:
    ANSI
0.5 kg
48
51
1604
16360
ANSI
11558
1-5/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.5 kg
  • Diameter:
    47
  • Length:
    57
  • Torque (Nm):
    1740
  • Torque (kg-cm):
    17743
  • Standards:
    ANSI
0.5 kg
47
57
1740
17743
ANSI
11559
1-3/8" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.5 kg
  • Diameter:
    52
  • Length:
    57
  • Torque (Nm):
    1887
  • Torque (kg-cm):
    19240
  • Standards:
    ANSI
0.5 kg
52
57
1887
19240
ANSI
11560
1-7/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.5 kg
  • Diameter:
    53
  • Length:
    57
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    ANSI
0.5 kg
53
57
2034
20738
ANSI
11561
1-1/2" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.5 kg
  • Diameter:
    56
  • Length:
    57
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
0.5 kg
56
57
2034
20738
DIN
11562
1-9/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.6 kg
  • Diameter:
    58
  • Length:
    57
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
0.6 kg
58
57
2034
20738
DIN
11563
1-5/8" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.6 kg
  • Diameter:
    60
  • Length:
    57
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
0.6 kg
60
57
2034
20738
DIN
11564
1-11/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.7 kg
  • Diameter:
    62
  • Length:
    62
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
0.7 kg
62
62
2034
20738
DIN
11565
1-3/4" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.75 kg
  • Diameter:
    64
  • Length:
    62
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
0.75 kg
64
62
2034
20738
DIN
11566
1-13/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.8 kg
  • Diameter:
    66
  • Length:
    64
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
0.8 kg
66
64
2034
20738
DIN
11567
1-7/8" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.9 kg
  • Diameter:
    68
  • Length:
    67
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
0.9 kg
68
67
2034
20738
DIN
11568
1-15/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    0.9 kg
  • Diameter:
    70
  • Length:
    70
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
0.9 kg
70
70
2034
20738
DIN
11569
2" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.1 kg
  • Diameter:
    72
  • Length:
    72
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.1 kg
72
72
2034
20738
DIN
11570
2-1/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.2 kg
  • Diameter:
    73
  • Length:
    72
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.2 kg
73
72
2034
20738
DIN
11571
2-1/8" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.2 kg
  • Diameter:
    76
  • Length:
    72
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.2 kg
76
72
2034
20738
DIN
11572
2-3/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.4 kg
  • Diameter:
    79
  • Length:
    74
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.4 kg
79
74
2034
20738
DIN
11573
2-1/4" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.3 kg
  • Diameter:
    80
  • Length:
    74
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.3 kg
80
74
2034
20738
DIN
11574
2-5/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.4 kg
  • Diameter:
    82
  • Length:
    75
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.4 kg
82
75
2034
20738
DIN
11575
2-3/8" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.5 kg
  • Diameter:
    83
  • Length:
    75
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.5 kg
83
75
2034
20738
DIN
11576
2-1/2" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.4 kg
  • Diameter:
    87
  • Length:
    75
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.4 kg
87
75
2034
20738
DIN
11577
2-9/16" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.5 kg
  • Diameter:
    90
  • Length:
    78
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.5 kg
90
78
2034
20738
DIN
11578
2-5/8" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.6 kg
  • Diameter:
    92
  • Length:
    80
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.6 kg
92
80
2034
20738
DIN
11579
2-3/4" x 3/4-Inch Drive Standard Impact Socket

Details

  • Weight:
    1.7 kg
  • Diameter:
    95
  • Length:
    88
  • Torque (Nm):
    2034
  • Torque (kg-cm):
    20738
  • Standards:
    DIN
1.7 kg
95
88
2034
20738
DIN
